Shanghai Muxiang-Conveying scheme of bagged products Project
Time:2021-03-16 Views:

           Preface

Shanghai Muxiang Environmental High-Tech Co., Ltd. established in 2006, is a High-Tech Enterprise focusing on automation machinery and equipment based on China and facing the world. The company integrates innovation, manufacturing, sales, and service. It is a leading automation equipment manufacturer in China. Our company's main management comes from the executives of listed companies with rich management experience. The R&D team is composed of engineers with more than ten years’ experience in equipment R&D and manufacturing. By the industry's leading innovative R&D capabilities and more than ten years' experience in serving nearly 1,000 high-end customers, we have the leading R&D technology in China. As many as 50 invention patents are owned by the company, and the product's high praise rate is over 95%. Our company customized the following scheme for your company.

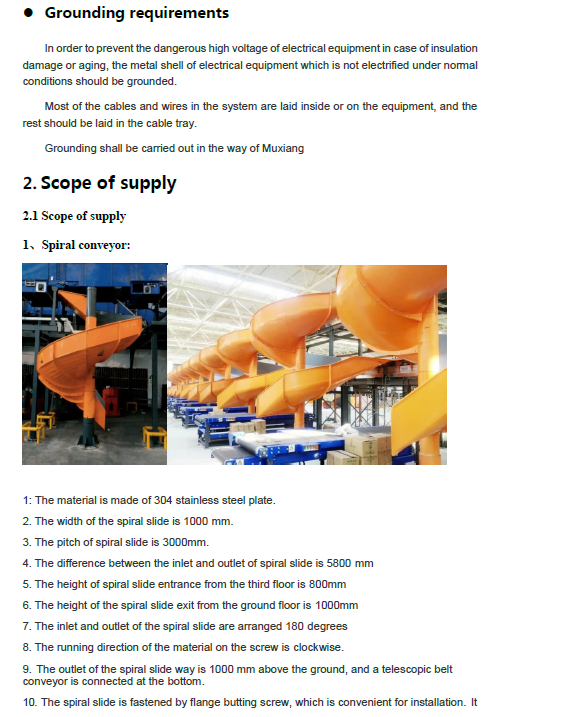

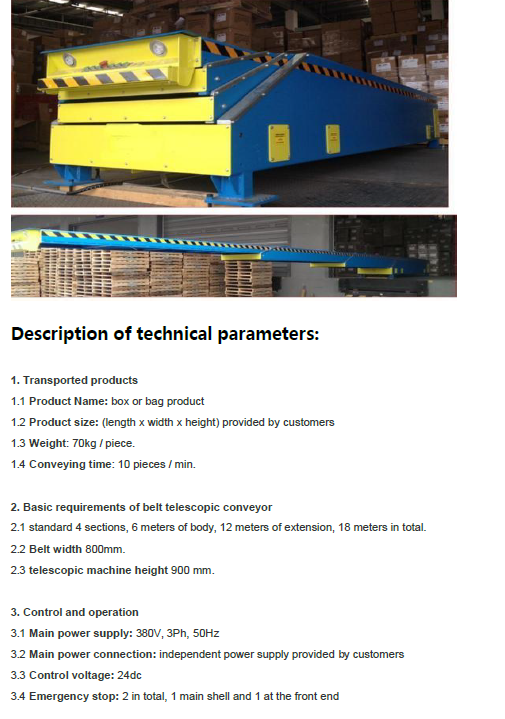

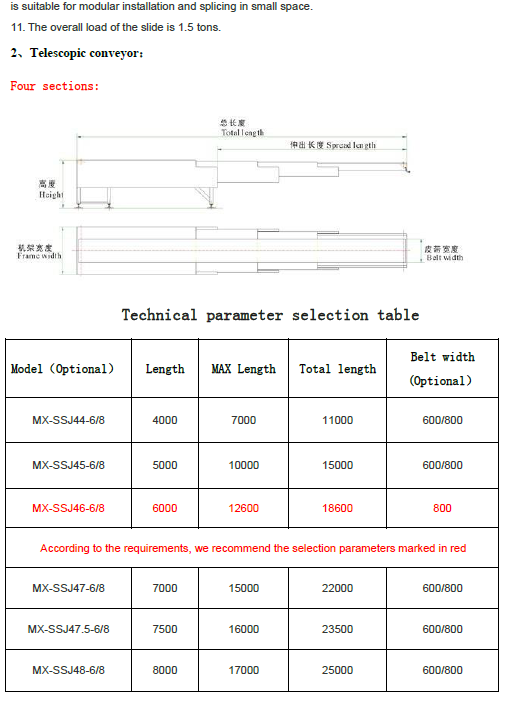

System DescriptionInclude spiral conveyor and telescopic conveyor.



Technological process Manually put the material on the spiral conveyor, Materials spiral down from the third floor to the first floor and enter the telescopic machine.
